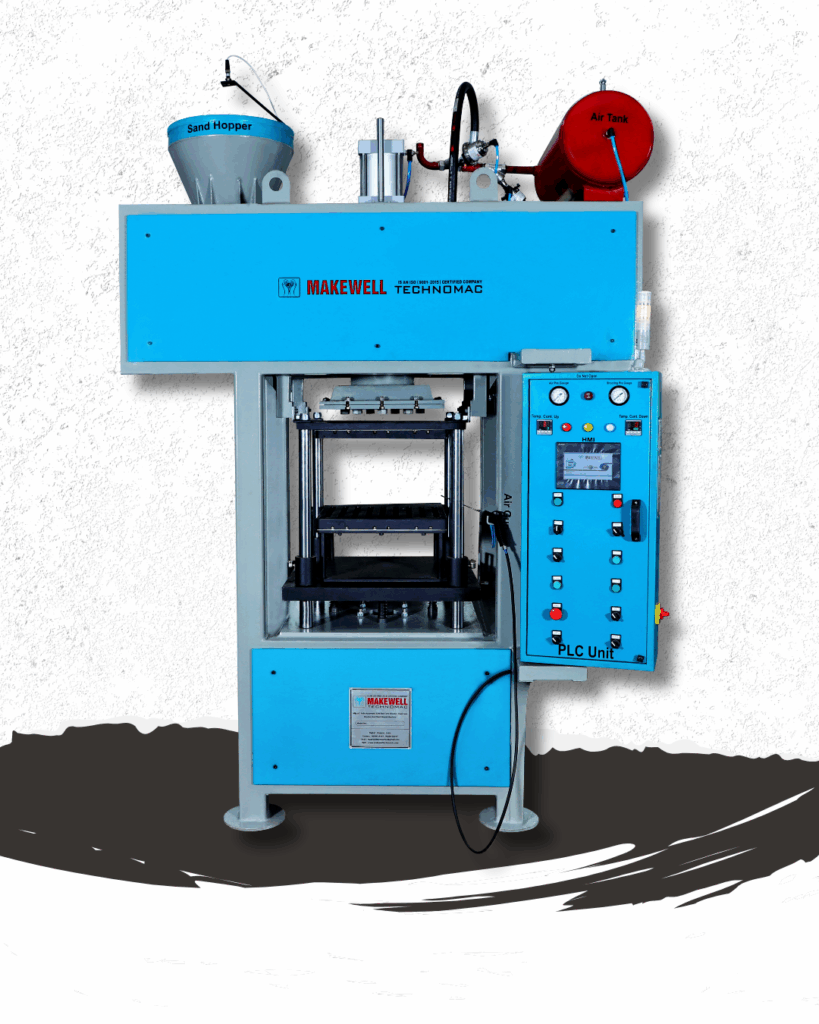

Shell Core Mould Shooter Machine Horizontal
Shell Core Mould Shooter Machine is designed for precision, durability, and high productivity in modern foundry operations. Built with heavy-duty components and PLC-based automation, it ensures reliable performance, energy efficiency, and consistent core quality for various applications.
- Heavy-Duty Construction with Aesthetic Design and Long, Low-Maintenance Life
- Available with or without Heater Plate, featuring Top & Bottom Ejection and Traveling Sand Magazine
- Multiple Shooting Facility, PLC-Controlled Operation, and Individual Temperature Controllers for Accuracy
Technical Specification
SPECIFICATION | MODEL MTSH-500-M | MODEL MTSH-600-M | MODEL MTSH-7560-MT |
Parting | Horizontal | Horizontal | Horizontal |
Shooting Capacity (kg) | 12 | 25 | 50 |
Shooting Type | Top | Top | Top |
Tooling Size (LxWxH mm) | 500X500X500 | 600X600X600 | 750X600X600 |
Shooting Point (Nos) | 17 | 21 | 29 |
Sand Hopper Capacity (kg) | 100 | 150 | 200 |
Bottom Ejection (mm) | Auto | Auto | Auto |
All Operation | Automatic | Automatic | Automatic |
Auto Sand Feeder | Optional | Optional | Optional |
Electricity Requirement (Kw) | 15 | 20 | 28 |
Pneumatic Pressure Required (kg./Cm²) | 5 To 7 | 5 To 7 | 5 To 7 |
Dry Cycle Time (Sec) | 15 | 15 | 35 |
